Recent Activity
Due to ongoing NDAs, we maintain discretion about many of our projects.
However, we occasionally find opportunities to showcase select work.
27 Sep.
Panelized PCBs & Stencil
Panels of end-of-line resistor PCBs ready for next stage in production.
28 Sep.
PoC Software
Proof of concept code to ensure a temperature sensor behaves as expected.
01 Oct.
PCB Design
Our two-stage linear 5V PSU - less noisy than our switched PSU in the same footprint.
11 Oct.
Dual Fan Assembly
3D model of dual 120mm fan controller with temperature sensors. For use in our inverter systems and comms cabinets.
PCB Design
18 APR 2022
Our current project is to develop more advanced means of monitoring patient safety. We're using several off-the-shelf modules to get this prototype up and running fast.
The ATI Fusion Bridge connects sensors over high security PoE network infrastructure. The PCB handles two low voltage compute modules and high current 12VDC to run security equipment. We expose the tracks so extra solder will greatly improve its power handling ability. We've also paid attention to ground plane placement to minimize transients from connected equipment.
Research & Development
31 JAN 2022

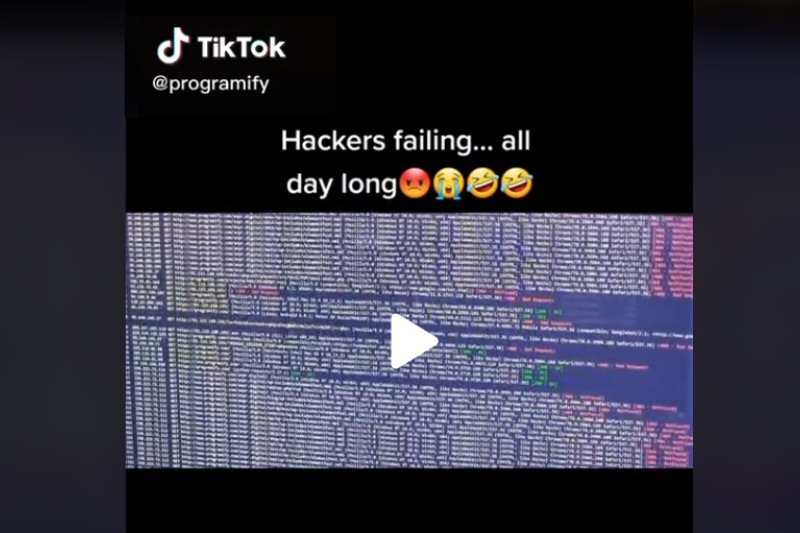

We've written some R&D code that stonewalls every single attempt to hack into our servers. It's true that they're mostly automated bots but it's impossible for hackers to craft an HTTP request that will get past our load-balancing reverse-proxy server. Unless we want them to... honeypots etc.
Meanwhile, all our honest visitors can access this website as normal.

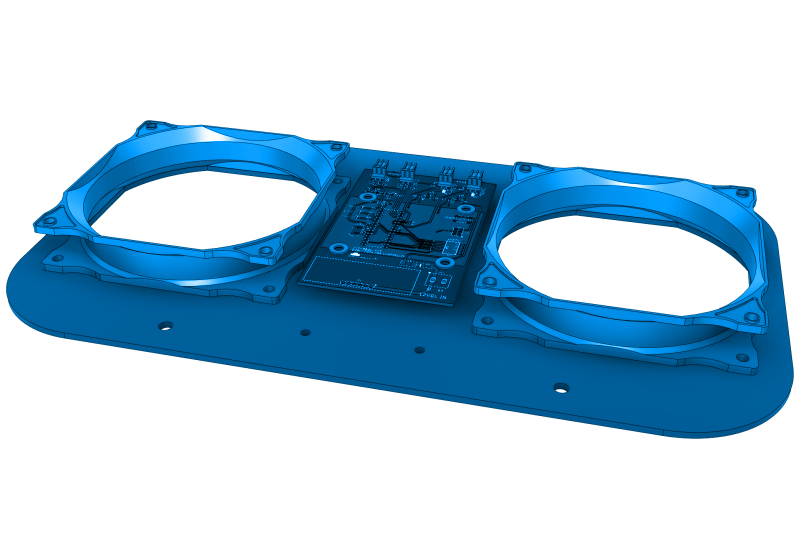

Dual Fan Assembly
11 OCT 2021
3D model of dual 120mm fan controller with temperature sensors. For use in our inverter systems and comms cabinets.
